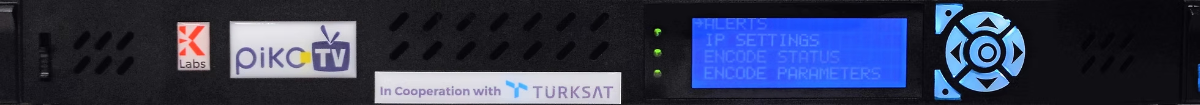

PikoTV Encoder & Transcoder
Professional, Modular & Ultra-Efficient Video Contribution Encoder
The PikoTV Encoder & Transcoder is a high-performance, carrier-grade video encoding platform designed for broadcast, IPTV, OTT, satellite, and contribution workflows. Built with a modular architecture and powered by next-generation compression technologies, it delivers exceptional video quality at the lowest possible bitrates.
Engineered for 24/7 reliability, the PikoTV Encoder supports AV1, VVC, LCEVC, HEVC, AVC and MPEG-2, enabling seamless integration into both legacy and cutting-edge deployments. Its adaptive architecture ensures stable operation for live TV channels, sports events, studio feeds, and remote contribution links.
With flexible input options (SDI, HDMI, SMPTE-2110, NDI, SRT, RIST, RTMP, UDP/RTP/TS) and highly optimized output profiles (CBR, VBR, ABR ladders for HLS/DASH/CMAF), the PikoTV Encoder adapts to any broadcast workflow. Operators can easily manage multiple channels simultaneously with intuitive web-based controls, failover mechanisms, and smart monitoring tools.
Delivering outstanding density, superior compression efficiency, and best-in-class stability, the PikoTV Encoder is the perfect choice for telcos, broadcasters, satellite operators, and OTT platforms looking for uncompromising performance.
PikoTV Encoder — professional-grade performance for the next generation of broadcasting.
Technical Specifications
Video Sources
- SDI / HDI (Up to 16)
- Analog AV
- 4x3G-Quad SDI or 12G (Up to 2x4K)
- HDMI (w/wo HDCP)
- DVB RF
- File / Encode Queue List
- IP (UDP / RTP / RTMP / RTSP / HLS / DASH / CMAF)
- ASI
- NDI
- SRT / RIST
Audio Sources
- Embedded Audio over SDI/HDMI
- Analog Audio
- Audio over IP
Stream Outputs
- SPTS / MPTS IP
- UDP / RTP / RTMP / RTSP / HLS / DASH / CMAF
- ASI
- NDI
- File
- CDN
- SRT / RIST
Encoding Options
- Constant Bitrate (CBR)
- Variable Bitrate (VBR)
- Capped Variable Bitrate (CVBR)
- Adaptive Bitrate for OTT (ABR)
- Multicast ABR
- Custom encoding bitrate range, resolution and frame-rate
Video Formats
- UHD (4K-8K), HD, SD
- Video FPS
- 60, 59, 50, 30, 25, 24 Hz
- Any custom resolution and frame-rate can be given
- Aspect Ratio
- 4:3, 16:9, 21:9, 5:4,
- 3:2, 8.5, 5:3, 17:9
- Any custom aspect ratio can be given
Control and Monitoring
- Web Interface with LDAP
- Front Panel
- SNMP
- Syslog
- Email Alerts
Video Encoding
- HEVC (H.265)
- Main 8 YUV 4:2:0
- Main 10 YUV 4:2:0
- AVC (H.264)
- Main 8 YUV 4:2:0
- Main 10 YUV 4:2:0 / 4:2:2
- MPEG2/4
- AV1
- EVC / VVC *
Video Processing
- Frame rate conversion
- Up & Down Scaling
- High quality deinterlacing
- Audio & Video Blackout
Video Quality
- 2 Pass Mode
- Still picture mode
- Fully adaptive GOP
- Motion Estimation
- Scene Change Detection
Audio Encoding
- MPEG-2 Audio
- MP3
- AAC-LC/HE-AAC 2.0: 32 to 128 kbps
- AAC-LC/HE-AAC 5.1: 96 to 448 kbps
- Dolby Digital 2.0:96 to 448 kbps
- Dolby Digital 5.1: 384 to 640 kbps
- Dolby Digital or Dolby Digital Plus pass through with error masking
- Dolby Digital Plus 5.1: 192 to 448 kbps
- Dolby AC-4 5.1: 96 to 226 kbps
- Automatic Loudness Control
Scrambling
- BISS-1
- BISS-E
- With hardened method
CDN
- Any CDN Compatible
- Work as RTMP and Origin Server
- RTMP / HLS / DASH / CMAF
Multiplexer
- Multiplex any UDP/RTP IP Source
- PID Filtering / Remapping
- Type Filtering / Remapping
- Stream routing any input—output
Packager
- HLS / DASH / CMAF
DRM
- PlayReady / Widevine / Fairplay
- Common Encryption (CENC)
- Key Rotation
IP Redundancy
- Source switch based on CC, Scramble, PID and Stream Loss
Addon Features
- Logo Insertion
- Watermarking
- Caption on Signal Lost
- Last Frame Injection on Packet Lost (SDI or IP)
- TS Recording / Playlist
- Test Signal Generation
- Content Share over Windows Networks
- Thumbnail Generation
- Time Schedules
- Stream Analyzer (TR 101 290)
Redundancy
- Dual Power Supply
- Multiport IP and ASI Output
- Multiport SDI/HDI source for recovery
- 1+1 Redundancy over Network Switch
High Dense on single chassis
- Up to 1080p@25 x 100 transcoding
- Up to 1080p@25 x 16 SDI Encode / Decode
Compliance
- CE marked in accordance with the 93/68/EEC (22/07/93) directive
- Safety: IEC 60950 and EN 60950
- UL 60950
- EMC: EN 55022, EN 55024
- EN 61000-3-2
Physical Characteristics
- 1U / 2U x 19"
- Power Consumption
- Max.1200W — 350W Work Load
- 100-240V AC
- Dual PSU
Environmental Conditions
- Working Temp: -5 C to 45 C
- Storage Temp: -10 C to 70 C
- Maximum Humidity: 90% RH
